+# 1. CMSIS-RTOS API是什么
+CMSIS-RTOS是用于实时操作系统（RTOS）的一层通用API，它提供了一套标准的API接口，可以移植到各种各样的RTOS上，使得上层的软件、中间件、库以及其他组件在不同的RTOS之上都可以正常工作。
+
+这套API表现为两个文件：cmsis-os.h和cmsis-os.c，在TencentOS-tiny中如下。
+
+- 基于TencentOS-tiny的CMSIS-RTOS API v1.02版本实现：
+  - `cmsis_os.h`
+  - `cmsis_os.c`
+- 基于TencentOS-tiny的CMSIS-RTOS API v2.1.3版本实现：
+  - `cmsis_os2.h`
+  - `cmsis_os2.c`
+

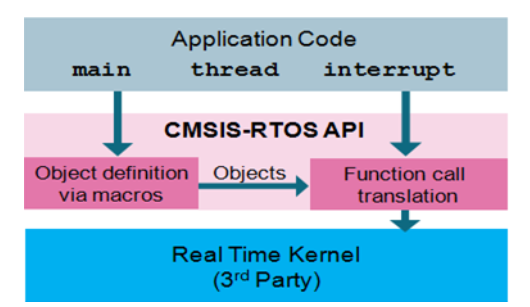

+CMSIS-RTOS API的整体架构如下图：
+![](https://img-blog.csdnimg.cn/20200717092428321.png)
+CMSIS-RTOS API官方参考文档链接：[https://www.keil.com/pack/doc/CMSIS/RTOS/html/index.html](https://www.keil.com/pack/doc/CMSIS/RTOS/html/index.html/)
+
+# 2. CMSIS-RTOS API列表
+下面列出了 CMSIS-RTOS API <font color="red">v1.02</font> 版本提供的所有API。
+
+CMSIS-RTOS 所有API使用的错误码（cmsis-os.h）：
+```c
+typedef enum {
+    osOK                    =     0,       ///< function completed; no error or event occurred.
+    osEventSignal           =  0x08,       ///< function completed; signal event occurred.
+    osEventMessage          =  0x10,       ///< function completed; message event occurred.
+    osEventMail             =  0x20,       ///< function completed; mail event occurred.
+    osEventTimeout          =  0x40,       ///< function completed; timeout occurred.
+    osErrorParameter        =  0x80,       ///< parameter error: a mandatory parameter was missing or specified an incorrect object.
+    osErrorResource         =  0x81,       ///< resource not available: a specified resource was not available.
+    osErrorTimeoutResource  =  0xC1,       ///< resource not available within given time: a specified resource was not available within the timeout period.
+    osErrorISR              =  0x82,       ///< not allowed in ISR context: the function cannot be called from interrupt service routines.
+    osErrorISRRecursive     =  0x83,       ///< function called multiple times from ISR with same object.
+    osErrorPriority         =  0x84,       ///< system cannot determine priority or thread has illegal priority.
+    osErrorNoMemory         =  0x85,       ///< system is out of memory: it was impossible to allocate or reserve memory for the operation.
+    osErrorValue            =  0x86,       ///< value of a parameter is out of range.
+    osErrorOS               =  0xFF,       ///< unspecified RTOS error: run-time error but no other error message fits.
+    os_status_reserved      =  0x7FFFFFFF  ///< prevent from enum down-size compiler optimization.
+} osStatus;
+```
+CMSIS-RTOS API一些可选项控制是否开启（cmsis-os.h）：
+```c
+#define osFeature_MainThread   1       ///< main thread      1=main can be thread, 0=not available
+#define osFeature_Pool         1       ///< Memory Pools:    1=available, 0=not available
+#define osFeature_MailQ        1       ///< Mail Queues:     1=available, 0=not available
+#define osFeature_MessageQ     1       ///< Message Queues:  1=available, 0=not available
+#define osFeature_Signals      0       ///< maximum number of Signal Flags available per thread
+#define osFeature_Semaphore    30       ///< maximum count for \ref osSemaphoreCreate function
+#define osFeature_Wait         0       ///< osWait function: 1=available, 0=not available
+#define osFeature_SysTick      1       ///< osKernelSysTick functions: 1=available, 0=not available
+```
+
+
+## 2.1. 内核信息和控制（Kernel information and control）
+
+|API|描述|
+|:---:|:---:|
+|osKernelInitialize|初始化RTOS内核|
+|osKernelStart|启动RTOS内核|
+|osKernelRunning|Query if the RTOS kernel is running|
+|osKernelSysTick (可选)|Get RTOS kernel system timer counter|
+|osKernelSysTickFrequency (可选)|RTOS kernel system timer frequency in Hz|
+|osKernelSysTickMicroSec (可选)|Convert microseconds value to RTOS kernel system timer value|
+
+- `osKernelInitialize`
+```c
+osStatus osKernelInitialize(void);
+```
+返回值：status code
+
+- `osKernelStart`
+```c
+osStatus osKernelStart(void);
+```
+返回值：status code
+
+- `osKernelRunning`
+```c
+int32_t osKernelRunning(void);
+```
+返回值：0表示RTOS未启动，1表示RTOS已经启动
+
+- `osKernelSysTick`
+```c
+uint32_t osKernelSysTick(void);
+```
+返回值：RTOS内核系统当前的时间
+
+## 2.2. 线程管理（Thread management）
+
+>`##`连接符的作用是连接两个字符串，合为一个字符串。
+
+CMSIS-RTOS API 存放线程参数管理的结构体如下：
+```c
+typedef struct os_thread_def {
+    char           *name;       ///< Thread name
+    os_pthread      pthread;    ///< start address of thread function
+    osPriority      tpriority;  ///< initial thread priority
+    uint32_t        instances;  ///< maximum number of instances of that thread function
+    k_stack_t      *stackbase;  ///< base address of task
+    uint32_t        stacksize;  ///< stack size requirements in bytes; 0 is default stack size
+    k_timeslice_t   timeslice;  ///< timeslice
+    k_task_t       *task;
+} osThreadDef_t;
+```
+
+CMSIS-RTOS API 定义线程的宏如下：
+```c
+#define osThreadDef(name, priority, instances, stacksz)  \
+    k_task_t task_handler_##name; \
+    k_stack_t task_stack_##name[(stacksz)]; \
+    const osThreadDef_t os_thread_def_##name = \
+        { #name, (os_pthread)(name), (osPriority)(priority), (instances), \
+        (&((task_stack_##name)[0])), (stacksz), ((k_timeslice_t)0u), (&(task_handler_##name)) }
+```
+>宏定义中的 instances 表示基于此任务参数，创建出几个任务实例，比如instances为2，则会创建出两个任务。
+
+CMSIS-RTOS API定义的获取线程参数结构体的宏如下：
+```c
+#define osThread(name)  \
+    &os_thread_def_##name
+```
+
+管理线程参数的API如下：
+
+|API|描述|
+|:---:|:---:|
+|osThreadCreate|创建线程并开始执行|
+|osThreadTerminate|停止线程执行|
+|osThreadYield|线程主动让出|
+|osThreadGetID|获取当前正在运行线程的ID|
+|osThreadSetPriority|改变线程优先级|
+|osThreadGetPriority|获取线程优先级|
+
+- `osThreadCreate`
+```c
+osThreadId osThreadCreate(const osThreadDef_t *thread_def, void *argument);
+```
+其中osThreadId被定义为k_task_t指针类型：
+```c
+typedef k_task_t *osThreadId;
+```
+返回值：TencentOS-tiny中的任务控制块类型指针。
+
+- `osThreadTerminate`
+```c
+osStatus osThreadTerminate(osThreadId thread_id);
+```
+返回值：osStatus
+
+- `osThreadYield`
+```c
+osStatus osThreadYield(void);
+```
+返回值：osStatus
+
+- `osThreadGetID`
+```c
+osThreadId osThreadGetId(void);
+```
+- `osThreadSetPriority`
+```c
+osStatus osThreadSetPriority(osThreadId thread_id, osPriority priority);
+```
+
+- `osThreadGetPriority`
+```c
+osPriority osThreadGetPriority(osThreadId thread_id);
+```
+
+>使用时需要特别注意，在TencentOS-tiny中，调用CMSIS-RTOS API提供的优先级选项设置之后，实际设置的任务值是不同的。
+
+CMSIS-RTOS API提供的线程优先级宏定义如下：
+```c
+typedef enum {
+    osPriorityIdle          = -3,          ///< priority: idle (lowest)
+    osPriorityLow           = -2,          ///< priority: low
+    osPriorityBelowNormal   = -1,          ///< priority: below normal
+    osPriorityNormal        =  0,          ///< priority: normal (default)
+    osPriorityAboveNormal   = +1,          ///< priority: above normal
+    osPriorityHigh          = +2,          ///< priority: high
+    osPriorityRealtime      = +3,          ///< priority: realtime (highest)
+    osPriorityError         =  0x84        ///< system cannot determine priority or thread has illegal priority
+} osPriority;
+```
+在TecentOS-tiny中实现的时候进行了转化：
+```c
+static k_prio_t priority_cmsis2knl(osPriority prio)
+{
+    if (prio == osPriorityError) {
+        return K_TASK_PRIO_INVALID;
+    }
+
+    return (k_prio_t)(3 - prio);
+}
+
+static osPriority priority_knl2cmsis(k_prio_t prio)
+{
+    return (osPriority)(3 - prio);
+}
+```
+比如创建线程时设置为 osPriorityNormal=0，则<font color="red">**实际设置的任务优先级为3**</font>。
+
+## 2.3. 通用等待函数
+CMSIS-RTOS提供的等待函数API如下：
+
+|API|描述|
+|:---:|:---:|
+|osDelay|等待指定的时间|
+|osWait（可选）|等待信号、消息、邮箱的某个事件|
+
+- `osDelay`
+```c
+osStatus osDelay(uint32_t millisec);
+```
+返回值：osStatus。
+
+## 2.4. 软件定时器管理
+CMSIS-RTOS API提供的存储定时器参数的结构体如下：
+```c
+typedef struct os_timer_def {
+    os_ptimer                 cb;   ///< start address of a timer function
+    k_timer_t                *timer;
+} osTimerDef_t;
+```
+
+CMSIS-RTOS API提供的定义一个软件定时器的宏定义如下：
+```c
+#define osTimerDef(name, function)  \
+    k_timer_t timer_handler_##name; \
+    const osTimerDef_t os_timer_def_##name = \
+        { (os_ptimer)(function), (&(timer_handler_##name)) }
+```
+CMSIS-RTOS API定义的获取软件定时器参数结构体的宏如下：
+```c
+#define osTimer(name) \
+    &os_timer_def_##name
+```
+CMSIS-RTOS API提供的软件定时器管理API如下：
+
+|API|描述|
+|:---:|:---:|
+|osTimerCreate|创建一个软件定时器|
+|osTimerStart|启动软件定时器|
+|osTimerStop|停止软件定时器|
+|osTimerDelete|删除软件定时器|
+
+- `osTimerCreate`
+```c
+osTimerId osTimerCreate(const osTimerDef_t *timer_def, os_timer_type type, void *argument);
+```
+其中osTimerId被定义为k_timer_t指针类型：
+```c
+typedef k_timer_t *osTimerId;
+```
+type参数为 os_timer_type 类型，表示软件定时器的类型为单次触发或者周期触发：
+```c
+typedef enum  {
+    osTimerOnce             =     0,       ///< one-shot timer
+    osTimerPeriodic         =     1        ///< repeating timer
+} os_timer_type;
+```
+
+- `osTimerStart`
+```c
+osStatus osTimerStart(osTimerId timer_id, uint32_t millisec);
+```
+返回值：osStatus。
+
+- `osTimerStop`
+```c
+osStatus osTimerStop(osTimerId timer_id)
+```
+返回值：osStatus。
+
+- `osTimerDelete`
+```c
+osStatus osTimerDelete(osTimerId timer_id);
+```
+返回值：osStatus。
+
+## 2.5. 信号量管理
+CMSIS-RTOS API提供的存储信号量参数的结构体如下：
+```c
+typedef struct os_semaphore_def {
+    uint32_t                    dummy;  ///< dummy value.
+    k_sem_t                    *sem;
+} osSemaphoreDef_t;
+```
+
+CMSIS-RTOS API提供的定义一个信号量的宏定义如下：
+```c
+#define osSemaphoreDef(name)  \
+    k_sem_t sem_handler_##name; \
+    const osSemaphoreDef_t os_semaphore_def_##name = { 0, (&(sem_handler_##name)) }
+```
+CMSIS-RTOS API定义的获取信号量参数结构体的宏如下：
+```c
+#define osSemaphore(name)  \
+    &os_semaphore_def_##name
+```
+CMSIS-RTOS API提供的信号量管理API如下：
+
+|API|描述|
+|:---:|:---:|
+|osSemaphoreCreate|创建一个信号量|
+|osSemaphoreWait|等待信号量|
+|osSemaphoreRelease|释放信号量|
+|osSemaphoreDelete|删除信号量|
+
+- `osSemaphoreCreate`
+```c
+osSemaphoreId osSemaphoreCreate(const osSemaphoreDef_t *semaphore_def, int32_t count);
+```
+其中 osSemaphoreId 被定义为k_sem_t指针类型：
+```c
+typedef k_sem_t *osSemaphoreId;
+```
+
+- `osSemaphoreWait`
+```c
+int32_t osSemaphoreWait(osSemaphoreId semaphore_id, uint32_t millisec);
+```
+返回值：int32_t ，正常返回当前count数，失败返回-1。
+
+如果需要阻塞延时，参数应该设置为CMSIS-RTOS API提供的宏定义 osWaitForever ：
+```c
+#define osWaitForever     0xFFFFFFFF     ///< wait forever timeout value
+```
+
+- `osSemaphoreRelease`
+```c
+osStatus osSemaphoreRelease(osSemaphoreId semaphore_id);
+```
+返回值：osStatus。
+
+- `osSemaphoreDelete`
+```c
+osStatus osSemaphoreDelete(osSemaphoreId semaphore_id);
+```
+返回值：osStatus。
+
+## 2.6. 互斥锁管理
+CMSIS-RTOS API提供的存储互斥锁参数的结构体如下：
+```c
+typedef struct os_mutex_def {
+    uint32_t                    dummy;  ///< dummy value.
+    k_mutex_t                  *mutex;
+} osMutexDef_t;
+```
+
+CMSIS-RTOS API提供的定义一个互斥锁的宏定义如下：
+```c
+#define osMutexDef(name)  \
+    k_mutex_t mutex_handler_##name; \
+    const osMutexDef_t os_mutex_def_##name = { 0, (&(mutex_handler_##name)) }
+```
+CMSIS-RTOS API定义的获取互斥锁参数结构体的宏如下：
+```c
+#define osMutex(name)  \
+    &os_mutex_def_##name
+```
+CMSIS-RTOS API提供的互斥锁管理API如下：
+
+|API|描述|
+|:---:|:---:|
+|osMutexCreate|创建一个互斥锁|
+|osMutexWait|等待获取互斥锁|
+|osMutexRelease|释放互斥锁|
+|osMutexDelete|删除互斥锁|
+
+- `osMutexCreate`
+```c
+osMutexId osMutexCreate(const osMutexDef_t *mutex_def);
+```
+其中 osMutexId 被定义为k_mutex_t指针类型：
+```c
+typedef k_mutex_t *osMutexId;
+```
+
+- `osMutexWait`
+```c
+osStatus osMutexWait(osMutexId mutex_id, uint32_t millisec);
+```
+返回值：osStatus 。
+
+如果需要阻塞延时，参数应该设置为CMSIS-RTOS API提供的宏定义 osWaitForever ：
+```c
+#define osWaitForever     0xFFFFFFFF     ///< wait forever timeout value
+```
+
+- `osMutexRelease`
+```c
+osStatus osMutexRelease(osMutexId mutex_id);
+```
+返回值：osStatus。
+
+- `osMutexDelete`
+```c
+osStatus osMutexDelete(osMutexId mutex_id);
+```
+返回值：osStatus。
+
+## 2.7. 静态内存池管理
+CMSIS-RTOS API提供的存储静态内存池参数的结构体如下：
+```c
+typedef struct os_pool_def {
+    uint32_t                    pool_sz;    ///< number of items (elements) in the pool
+    uint32_t                    item_sz;    ///< size of an item
+    void                       *pool;       ///< pointer to memory for pool
+    k_mmblk_pool_t             *mmblk_pool; ///< memory blk pool handler
+} osPoolDef_t;
+```
+
+CMSIS-RTOS API提供的定义一个互斥锁的宏定义如下：
+```c
+#define osPoolDef(name, no, type)   \
+    k_mmblk_pool_t mmblk_pool_handler_##name; \
+    uint8_t mmblk_pool_buf_##name[(no) * sizeof(type)]; \
+    const osPoolDef_t os_pool_def_##name = \
+        { (no), sizeof(type), (&((mmblk_pool_buf_##name)[0])), (&(mmblk_pool_handler_##name)) }
+```
+CMSIS-RTOS API定义的获取互斥锁参数结构体的宏如下：
+```c
+#define osPool(name) \
+	&os_pool_def_##name
+```
+CMSIS-RTOS API提供的互斥锁管理API如下：
+
+|API|描述|
+|:---:|:---:|
+|osPoolCreate|创建一块固定大小的静态内存池|
+|osPoolAlloc|申请分配内存|
+|osPoolCAlloc|申请分配一块内存并全部初始化为0|
+|osPoolFree|申请回收内存|
+
+- `osPoolCreate`
+```c
+osPoolId osPoolCreate(const osPoolDef_t *pool_def);
+```
+其中 osPoolId 被定义为 k_mmblk_pool_t 指针类型：
+```c
+typedef k_mmblk_pool_t *osPoolId;
+```
+
+- `osPoolAlloc`
+```c
+void *osPoolAlloc(osPoolId pool_id);
+```
+
+- `osPoolCAlloc`
+```c
+void *osPoolCAlloc(osPoolId pool_id);
+```
+
+- `osPoolFree`
+```c
+osStatus osPoolFree(osPoolId pool_id, void *block);
+```
+返回值：osStatus。
+
+## 2.8. 消息队列管理
+CMSIS-RTOS API提供的存储消息队列参数的结构体如下：
+```c
+typedef struct os_messageQ_def {
+    uint32_t                    queue_sz;   ///< number of elements in the queue
+    uint32_t                    item_sz;    ///< size of an item
+    void                       *pool;       ///< memory array for messages
+    k_msg_q_t                  *queue;      ///< queue handler
+} osMessageQDef_t;
+```
+
+CMSIS-RTOS API提供的定义一个消息队列的宏定义如下：
+```c
+#define osMessageQDef(name, queue_sz, type)   \
+    k_msg_q_t msg_q_handler_##name; \
+    const osMessageQDef_t os_messageQ_def_##name = \
+        { (queue_sz), sizeof(type), NULL, (&(msg_q_handler_##name)) }
+```
+CMSIS-RTOS API定义的获取消息队列参数结构体的宏如下：
+```c
+#define osMessageQ(name) \
+    &os_messageQ_def_##name
+```
+CMSIS-RTOS API提供的消息队列管理API如下：
+
+|API|描述|
+|:---:|:---:|
+|osMessageCreate|初始化一个消息队列|
+|osMessagePut|向消息队列中加入数据|
+|osMessageGet|从消息队列中取出数据|
+
+- `osMessageCreate`
+```c
+osMessageQId osMessageCreate(const osMessageQDef_t *queue_def, osThreadId thread_id);
+```
+其中 osMessageQId 被定义为 k_msg_q_t 指针类型：
+```c
+typedef k_msg_q_t *osMessageQId;
+```
+
+- `osMessagePut`
+```c
+osStatus osMessagePut(osMessageQId queue_id, uint32_t info, uint32_t millisec);
+```
+返回值：osStatus 。
+
+>因为TencentOS-tiny中消息队列实现机制的不同，此API中的 millisec 参数未用到。
+
+- `osMessageGet`
+```c
+osEvent osMessageGet(osMessageQId queue_id, uint32_t millisec);
+```
+返回值：osEvent ，其中包含了事件信息和错误码，以及消息队列收到的值。
+
+
+如果需要阻塞延时，参数应该设置为CMSIS-RTOS API提供的宏定义 osWaitForever ：
+```c
+#define osWaitForever     0xFFFFFFFF     ///< wait forever timeout value
+```
+
+# 3. 使用示例
+## 3.1. 任务创建示例
+```c
+#include <cmsis_os.h>
+
+void task1_entry(void *arg)
+{
+    while(1)
+    {
+        printf("task1 is running...\r\n");
+        osDelay(1000);
+    }
+}
+osThreadDef(task1_entry, osPriorityNormal, 1, 512);
+
+void task2_entry(void *arg)
+{
+
+    while(1)
+    {
+        printf("task2 is running...\r\n");
+        osDelay(1000);
+    }
+}
+osThreadDef(task2_entry, osPriorityNormal, 1, 512);
+
+void application_entry(void *arg)
+{
+
+    osThreadCreate(osThread(task1_entry), NULL);
+    osThreadCreate(osThread(task2_entry), NULL);
+
+    return;
+}
+```
+任务运行结果如下：
+```c
+task1 is running...
+task2 is running...
+task1 is running...
+task2 is running...
+task1 is running...
+task2 is running...
+```
+
+## 3.2. 软件定时器使用示例
+```c
+#include <cmsis_os.h>
+
+void timer1_cb(void *arg)
+{
+    printf("timer1 is timeout!\r\n");
+}
+
+void timer2_cb(void *arg)
+{
+    printf("timer2 is timeout!\r\n");
+}
+
+osTimerDef(timer1, timer1_cb);
+osTimerDef(timer2, timer2_cb);
+
+void application_entry(void *arg)
+{
+    osTimerId timer1;
+    osTimerId timer2;
+
+    timer1 = osTimerCreate(osTimer(timer1), osTimerOnce, NULL);
+    timer2 = osTimerCreate(osTimer(timer2), osTimerPeriodic, NULL);
+
+    osTimerStart(timer1, 5000);
+    osTimerStart(timer2, 1000);
+
+    return;
+}
+```
+运行结果如下：
+```c
+timer2 is timeout!
+timer2 is timeout!
+timer2 is timeout!
+timer2 is timeout!
+timer1 is timeout!
+timer2 is timeout!
+timer2 is timeout!
+timer2 is timeout!
+timer2 is timeout!
+```
+
+## 3.3. 信号量使用示例
+```c
+#include <cmsis_os.h>
+
+osSemaphoreId sync_sem_id;
+osSemaphoreDef(sync_sem);
+
+void task1_entry(void *arg)
+{
+    while(1)
+    {
+        printf("task1 is waiting sem forever...\r\n");
+        osSemaphoreWait(sync_sem_id, osWaitForever);
+        printf("task1 get sem!\r\n");
+    }
+}
+osThreadDef(task1_entry, osPriorityNormal, 1, 512);
+
+void task2_entry(void *arg)
+{
+
+    while(1)
+    {
+        printf("task2 will release a sem...\r\n");
+        osSemaphoreRelease(sync_sem_id);
+        osDelay(1000);
+    }
+}
+osThreadDef(task2_entry, osPriorityNormal, 1, 512);
+
+void application_entry(void *arg)
+{
+    sync_sem_id = osSemaphoreCreate(osSemaphore(sync_sem), 0);
+
+    osThreadCreate(osThread(task1_entry), NULL);
+    osThreadCreate(osThread(task2_entry), NULL);
+
+    return;
+}
+```
+运行结果为：
+```c
+task1 is waiting sem forever...
+task1 get sem!
+task1 is waiting sem forever...
+task2 will release a sem...
+task1 get sem!
+task1 is waiting sem forever...
+task2 will release a sem...
+task1 get sem!
+task1 is waiting sem forever...
+task2 will release a sem...
+task1 get sem!
+task1 is waiting sem forever...
+task2 will release a sem...
+task1 get sem!
+task1 is waiting sem forever...
+```
+
+## 3.4. 互斥锁使用示例
+```c
+#include <cmsis_os.h>
+
+osMutexId sync_mutex_id;
+osMutexDef(sync_mutex);
+
+void task1_entry(void *arg)
+{
+    while(1)
+    {
+        osMutexWait(sync_mutex_id, osWaitForever);
+
+        printf("task1 get mutex,doing sth...\r\n");
+        HAL_Delay(1000);    //死循环占用CPU
+        printf("task1 finish do sth!\r\n");
+
+        osMutexRelease(sync_mutex_id);
+
+        osDelay(1000);
+    }
+}
+osThreadDef(task1_entry, osPriorityHigh, 1, 512);
+
+void task2_entry(void *arg)
+{
+
+    while(1)
+    {
+        osMutexWait(sync_mutex_id, osWaitForever);
+
+        printf("task2 get mutex,doing sth...\r\n");
+        HAL_Delay(2000);    //死循环占用CPU
+        printf("task2 finish do sth!\r\n");
+
+        osMutexRelease(sync_mutex_id);
+
+        osDelay(1000);
+    }
+}
+osThreadDef(task2_entry, osPriorityNormal, 1, 512);
+
+void application_entry(void *arg)
+{
+    sync_mutex_id = osMutexCreate(osMutex(sync_mutex));
+
+    osThreadCreate(osThread(task1_entry), NULL);
+    osThreadCreate(osThread(task2_entry), NULL);
+
+    return;
+}
+```
+运行结果为：
+```c
+task1 get mutex,doing sth...
+task1 finish do sth!
+task2 get mutex,doing sth...
+task2 finish do sth!
+task1 get mutex,doing sth...
+task1 finish do sth!
+task1 get mutex,doing sth...
+task1 finish do sth!
+task2 get mutex,doing sth...
+```
+## 3.5. 动态内存使用示例
+
+
+## 3.6. 消息队列使用示例
+```c
+#include <cmsis_os.h>
+
+#define STK_SIZE_TASK_RECEIVER      512
+#define STK_SIZE_TASK_SENDER        512
+
+#define MESSAGE_MAX     10
+
+osMessageQId msg_q_id;
+osMessageQDef(msg_q,MESSAGE_MAX,uint32_t);
+
+void task_receiver_entry(void *arg)
+{
+    osEvent event;
+    osStatus ret;
+    uint32_t value;
+
+    while (1)
+    {
+        event = osMessageGet(msg_q_id, osWaitForever);
+        ret = event.status;
+        if (ret == osOK)
+        {
+            value = event.value.v;
+            printf("receiver: msg incoming[%s]\r\n", (char*)value);
+        }
+    }
+}
+osThreadDef(task_receiver_entry, osPriorityNormal, 1, STK_SIZE_TASK_RECEIVER);
+
+void task_sender_entry(void *arg)
+{
+    char *msg_prio_0 = "msg 0";
+    char *msg_prio_1 = "msg 1";
+    char *msg_prio_2 = "msg 2";
+
+    printf("sender: post a messgae:[%s]\r\n", msg_prio_2);
+    osMessagePut(msg_q_id,(uint32_t)msg_prio_2,0);
+
+    printf("sender: post a messgae:[%s]\r\n", msg_prio_1);
+    osMessagePut(msg_q_id,(uint32_t)msg_prio_1,0);
+
+    printf("sender: post a messgae:[%s]\r\n", msg_prio_0);
+    osMessagePut(msg_q_id,(uint32_t)msg_prio_0,0);
+
+}
+osThreadDef(task_sender_entry, osPriorityNormal, 1, STK_SIZE_TASK_SENDER);
+
+void application_entry(void *arg)
+{
+    msg_q_id = osMessageCreate(osMessageQ(msg_q),NULL);
+
+    osThreadCreate(osThread(task_receiver_entry), NULL);
+    osThreadCreate(osThread(task_sender_entry), NULL);
+
+    return;
+}
+```
+
+运行结果为：
+```c
+sender: post a messgae:[msg 2]
+sender: post a messgae:[msg 1]
+sender: post a messgae:[msg 0]
+receiver: msg incoming[msg 2]
+receiver: msg incoming[msg 1]
+receiver: msg incoming[msg 0]
+```
